1. The disc print image you select should be square and without the circular or hub masks. Our software masks the cd and hub shape for you.



    2. The images you select for the disc print and package covers and insert will be stretched (resampled) to fit the package and disc. Therefore, they need not match the dimensions listed below. To minimize resampling you should select images that are at least proportional and preferably precisely equal to the dimensions listed below.



    3. Our factory prints the disc, the case covers, and the inserts at 300 DPI / RGB / 16 bit color / no bleed.



    4. Your monitor's resolution is much less than 300 DPI. Therefore, the disc and case rendered on your monitor has a significantly lower resolution than the manufactured product.



    5. Bleed areas are not needed. We use precise digital cutting machines that automatically adjust for print shift. However, we still suggest that you do not place text or lines adjacent to the edges.



    6. The table below lists the dimensions in millimeters, inches and pixels

                                                                       millimeters                          inches                                   pixels

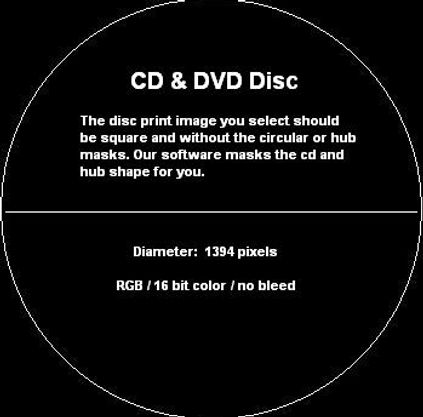

                      cd and dvd disc print dimensions

width:                                                           118.00                                      4.65                                         1394
height:                                                          118.00                                      4.65                                         1394



note: for disc images use a square image rather than a circular, masked image.

                      dvd case print dimensions



cover width:                                                                        274.00                                    10.79                                         3236
cover height:                                                                       184.00                                      7.24                                         2173
spine width:                                                                           14.00                                      0.55                                           165

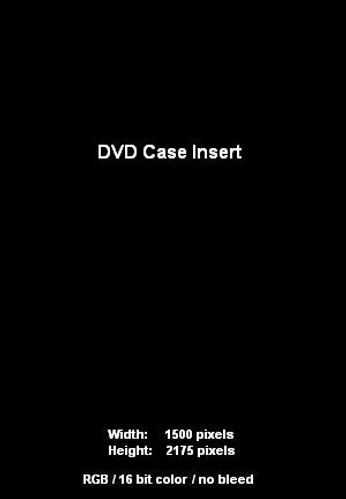

insert width:                                                                        127.00                                      5.00                                         1500
insert height:                                                                       184.15                                      7.25                                         2175



                      jewel case print dimensions

front cover width:                                                             120.50                                      4.74                                         1423
front cover height:                                                            119.50                                      4.70                                         1411

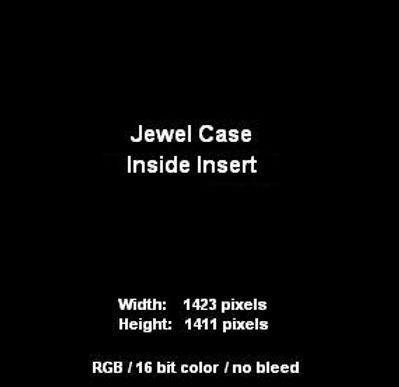

insert width:                                                                        120.50                                      4.74                                         1423
insert height:                                                                       119.50                                      4.70                                         1411

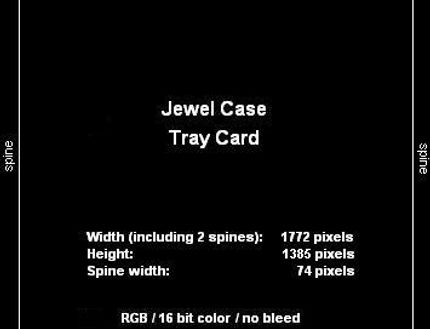

tray card (includes two spines) width:                       150.02                                       5.91                                         1772
tray card (includes two spines) height:                      117.25                                       4.62                                         1385
spine width:                                                                             6.25                                       0.25                                              74

Basic CD Artwork Information
